I believe most M14 parts were parkerized using manganese phosphate. SAI uses a similar process for most parts, but I believe the more recent rifles have a blued finish on some small parts that are made overseas, such as the elevation knob, sight base, gas lock, etc.
Rifles under the 250k serial range seem to have a uniform parkerizing very similar to the original M14.
Early SAI rifles with USGI parts, will often have parts with a greenish tint that was caused by the parkerizing reacting to cosmoline.
Rifles under the 250k serial range seem to have a uniform parkerizing very similar to the original M14.
Early SAI rifles with USGI parts, will often have parts with a greenish tint that was caused by the parkerizing reacting to cosmoline.
Sounds good thanks for the info.
Reason I ask is it seems that a usgi FH that I saw recently was darker in color than my grayer, 350,000 serial number m1a standard. I would like to drop this thing into a usgi stock, usgi FH, and refinish it to match a GI M14. Maybe even add a faux selector.
So would the usgi guns actually be darker thab my grayish m1a or is the FH reference just anecdotal?
Reason I ask is it seems that a usgi FH that I saw recently was darker in color than my grayer, 350,000 serial number m1a standard. I would like to drop this thing into a usgi stock, usgi FH, and refinish it to match a GI M14. Maybe even add a faux selector.
So would the usgi guns actually be darker thab my grayish m1a or is the FH reference just anecdotal?
^^^ Correct. The military specification does not require a specific color match and from the carbines and M16s I worked on in the Air Force there was always some variance in color between the parts. About the only time you will find an exact match in color is when a weapon was arsenal reworked and the whole thing was reparked.
Joined
·
363 Posts
MIL-DTL-16232, Type M, Class 2, supplementary treatment with lubrication oil conforming to MIL-PRF-3150. Go read it yourself: http://wbdg.org/ccb/FEDMIL/p16232f.pdf
Joined
·
132 Posts
Real M14
Here is a pic of a full auto M14 in my possession. Manufactured 1962-64. It belongs to my department and is assigned to me.
Here is a pic of a full auto M14 in my possession. Manufactured 1962-64. It belongs to my department and is assigned to me.
Joined
·
96 Posts
Looking at the pics the bolts are marked "kk" & "ww"

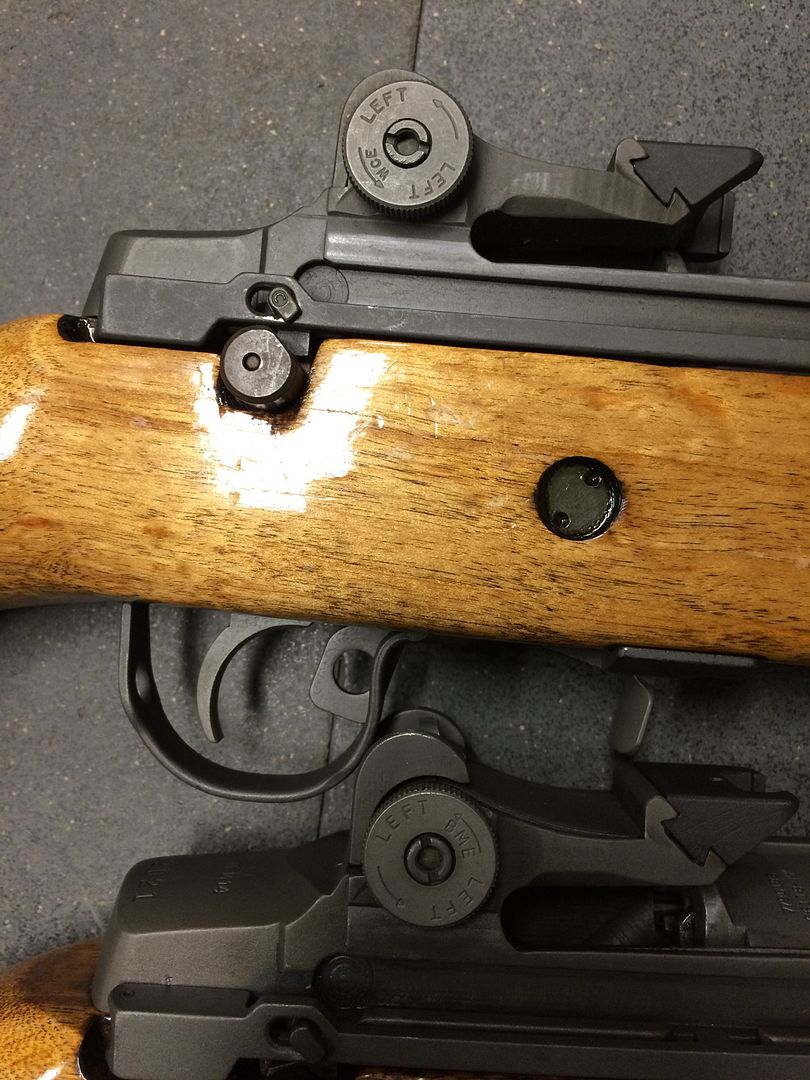

The windage knobs are "wce" & "bme"
And the trigger is "cm-n"
All markings are new to me. Different from the traditional usgi markings.. I was under the impression that no new m14's were being produced other than Smith enterprise..
Can someone explain these conflicting marks..and as the poster said "real m14's" I assume they are of the same grade or better than usgi..why I never heard of these particular marked parts on this forum? And why are these not sought after for home builds or replacement parts as the usgi ones?
The windage knobs are "wce" & "bme"
And the trigger is "cm-n"
All markings are new to me. Different from the traditional usgi markings.. I was under the impression that no new m14's were being produced other than Smith enterprise..
Can someone explain these conflicting marks..and as the poster said "real m14's" I assume they are of the same grade or better than usgi..why I never heard of these particular marked parts on this forum? And why are these not sought after for home builds or replacement parts as the usgi ones?
Joined
·
4,078 Posts

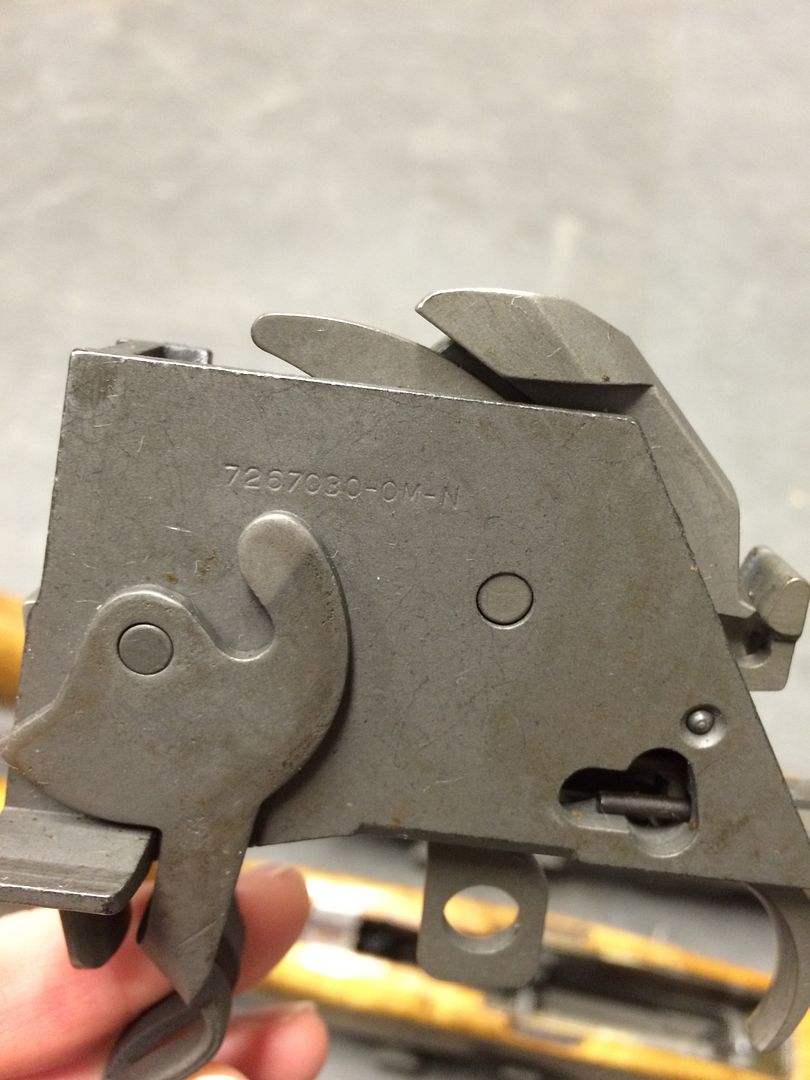

Kk,ww;are the heat treatment code, or lot number. The windage knobs are reai deal USGI windage knobs. The trigger housing is marked, OM-N, this is for Olie Mathesson, for Winchester., These are all USGI Parts and are sought after.
Someone can correct my spelling.
Joined
·
2,661 Posts

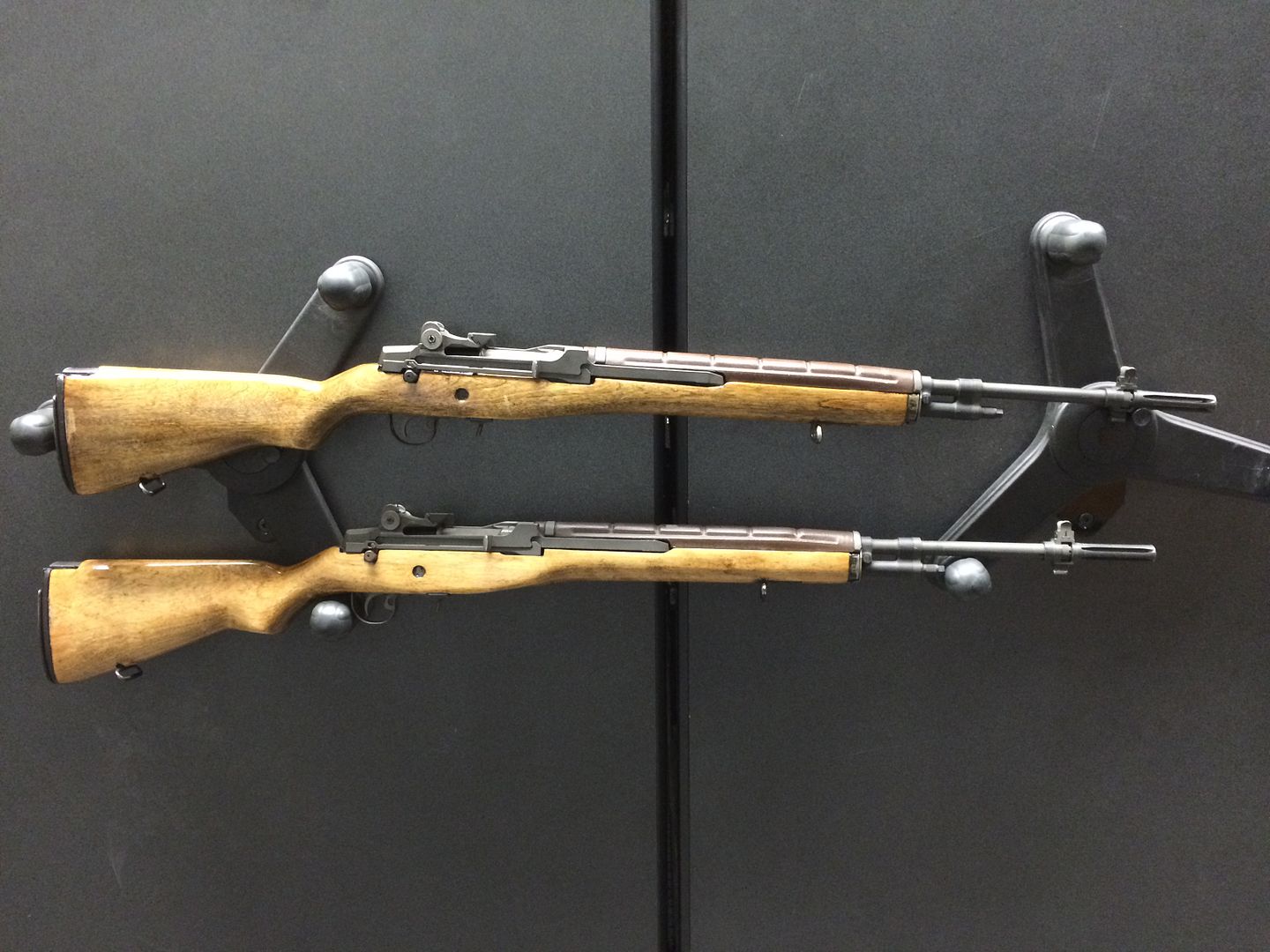

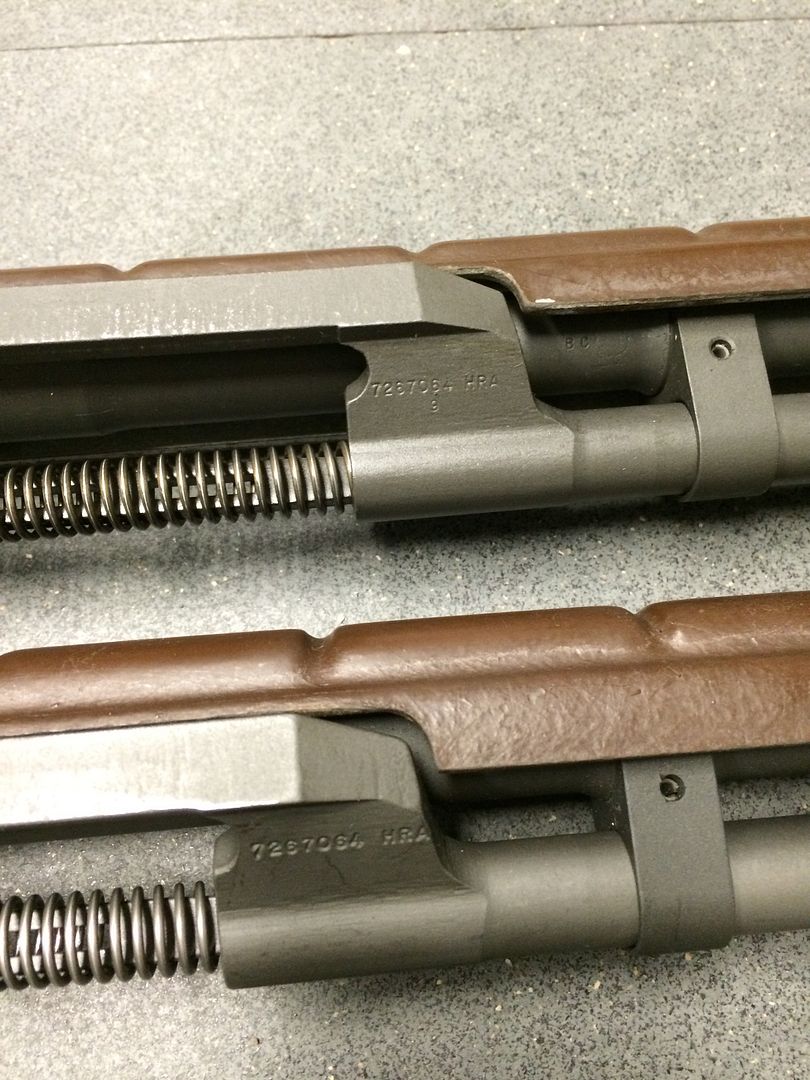

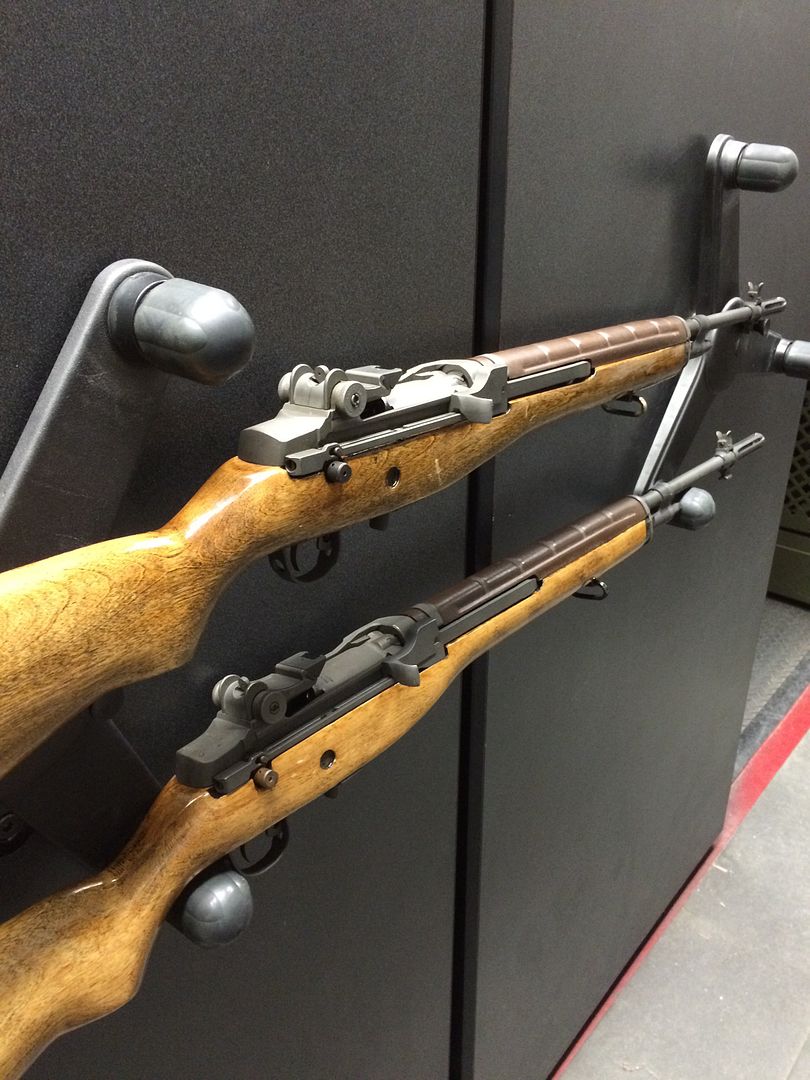

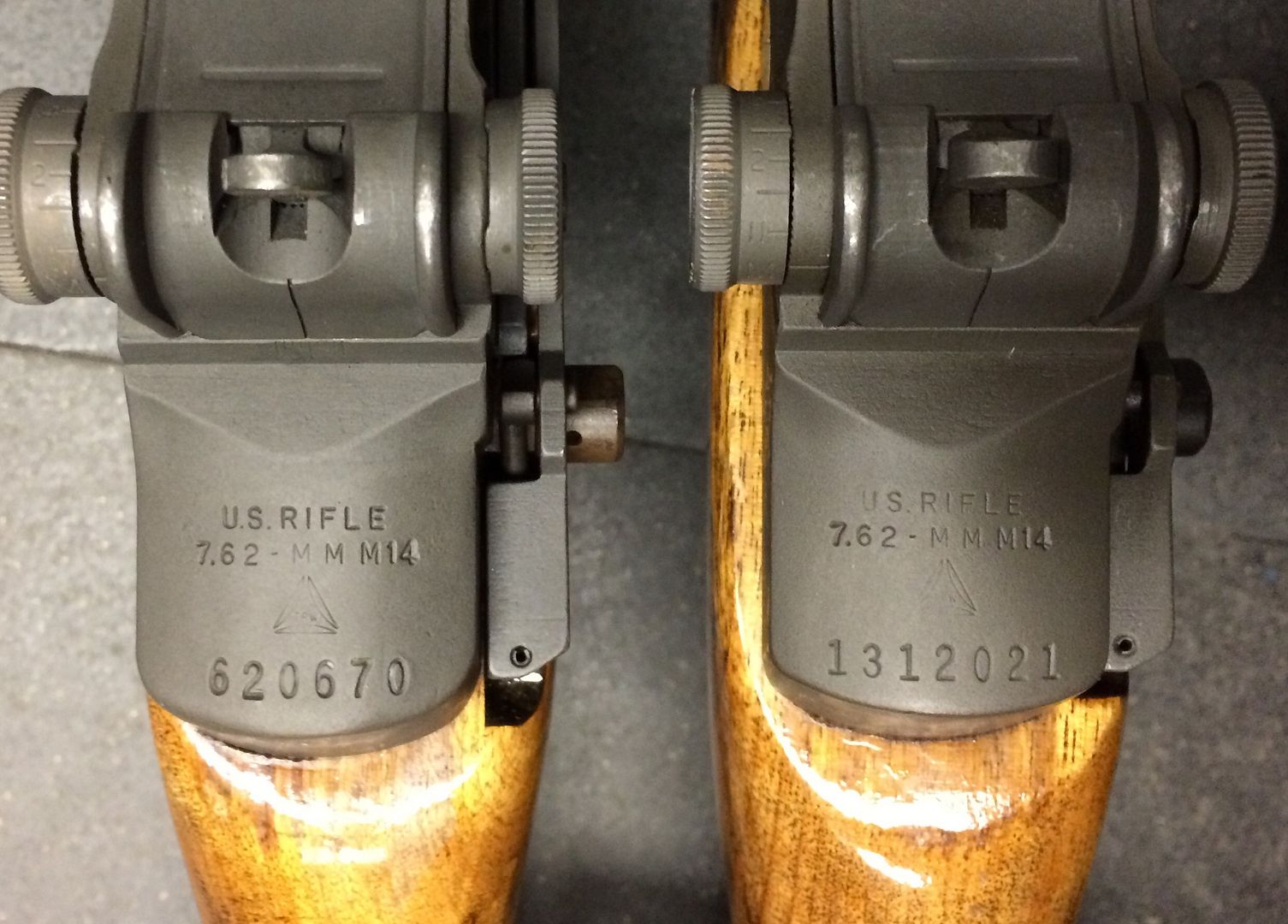

Here are pictures I took of real M14s that are ARSENAL REBUILT in the armory where I work:
Fixed the opening statement for you, added arsenal rebuilt.
Nice rifles by the way

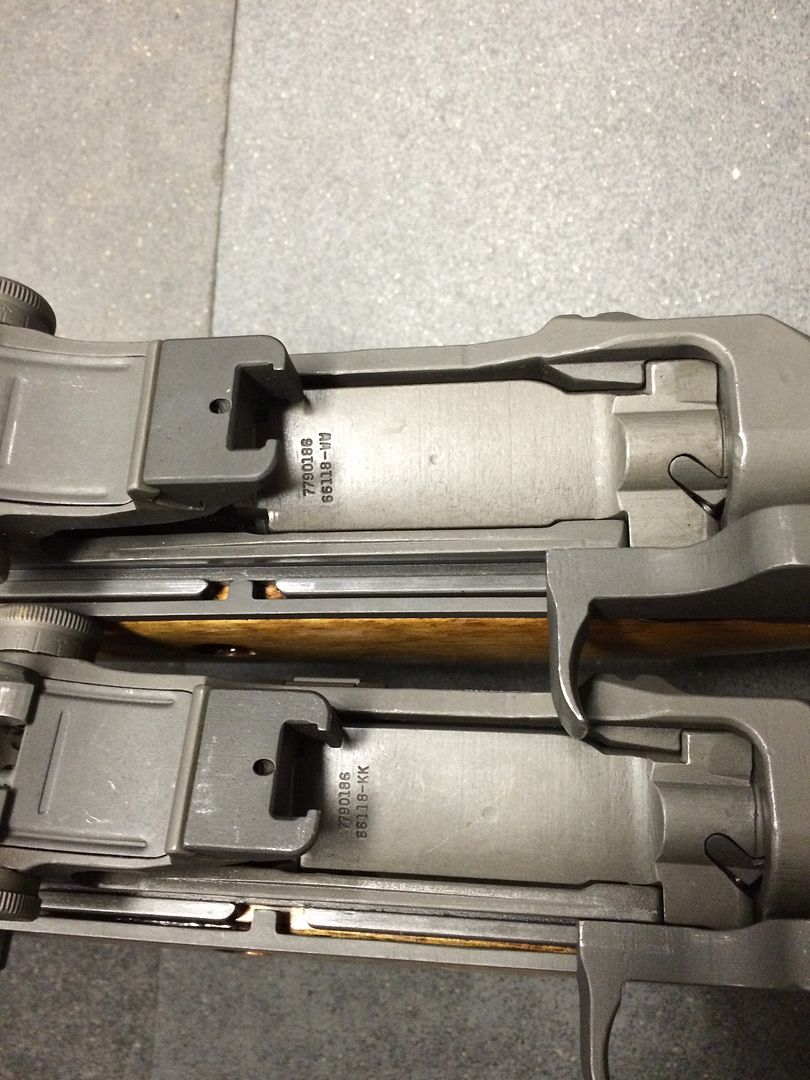

Both bolts were made by Winchester, as indicated by the 66118 manufacturer number.
WCE was a subcontractor - Wilco Electric Co
BME was a subcontractor - Bruce Machine and Engineering
As noted above OM indicated Olin-Mathieson Chemical Corp, which is the parent company to Winchester.
WCE was a subcontractor - Wilco Electric Co
BME was a subcontractor - Bruce Machine and Engineering
As noted above OM indicated Olin-Mathieson Chemical Corp, which is the parent company to Winchester.
Joined
·
2,957 Posts
I didn't realize we were discussing the pictures I posted months ago. RNGR3
75nova, if you've never seen those, check out my thread here: http://m14forum.com/reference/180945-winchester-olin-mathieson-parts.html
A few photos down you'll see manufacturers such as Han-dee Spring, Stanley-Humason, Hesse-Machine, etc. all making parts for Winchester. Thought you might find it interesting. RNGR1
75nova, if you've never seen those, check out my thread here: http://m14forum.com/reference/180945-winchester-olin-mathieson-parts.html
A few photos down you'll see manufacturers such as Han-dee Spring, Stanley-Humason, Hesse-Machine, etc. all making parts for Winchester. Thought you might find it interesting. RNGR1
Never leave this job! GI2
Joined
·
210 Posts
I just replaced the trigger group in my Springfield standard with a Milspec group and the rifle has a darker finish than the trigger group housing.
