Discussion Starter · #1 ·

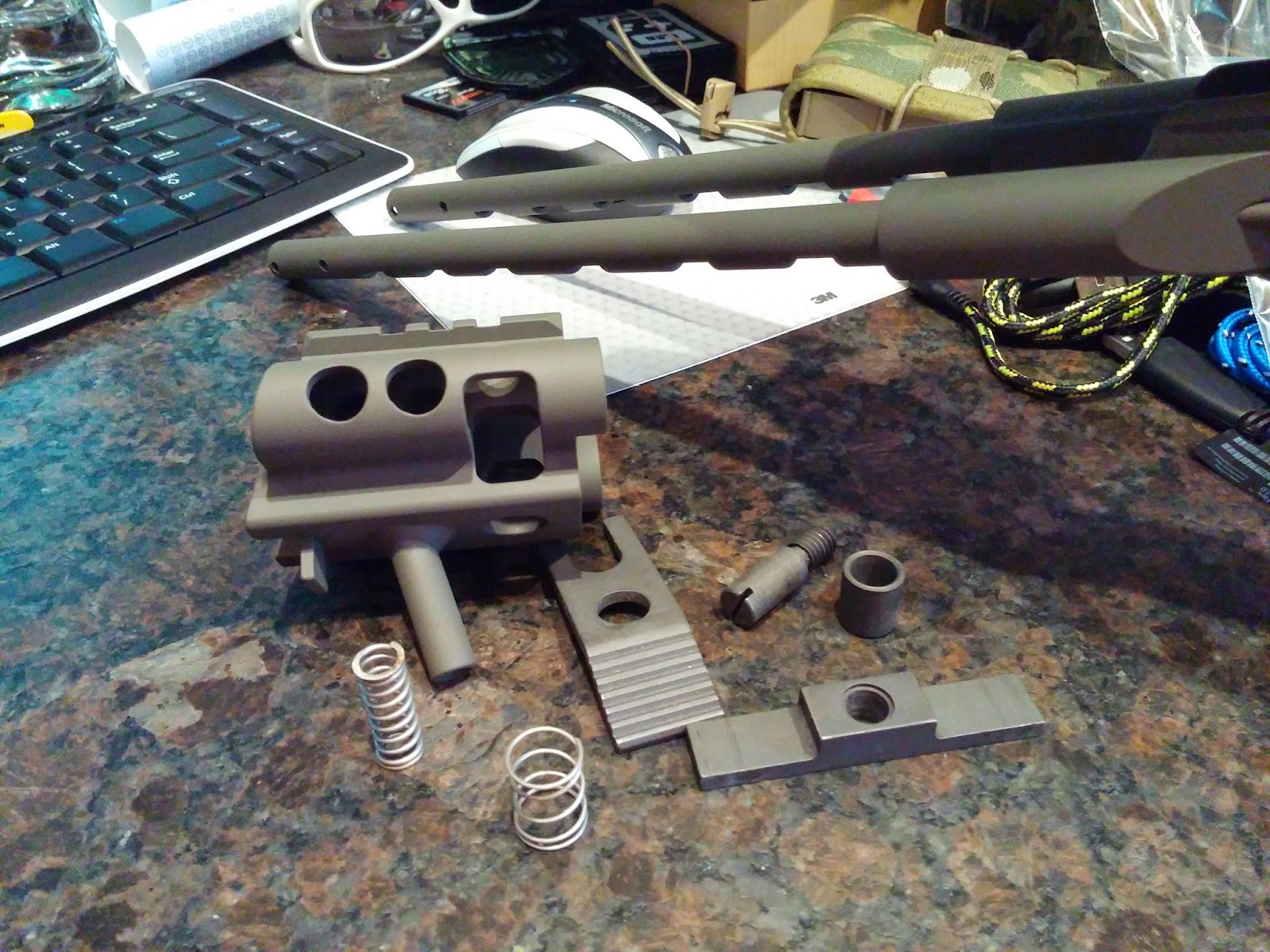

Ok, I have the SAGE EBR and I completely disassembled it to paint. Painted it and then now I'm reassembling but I can't remember how this went together? I called Sage and they'll get back to me.

Can anyone send instructions or a PDF on how to get this to work right again? GI1



·
Registered
Joined
·
57 Posts
im trying to upload pictures of mine off my phone right now but its being finniky. from the looks of it it should go the spacer on the bottom and the thin spring inside of that, then the long bar that locks it in place, then the actual peice you push with your thumb, then the wide spring then the screw from the top. hope that makes sense. like i said im trying to upload pictures for you now


·
Registered
Joined
·
10 Posts
Discussion Starter · #11 ·
Here it is all put back together. Sweet in Foliage Green + 15% Black. It is somewhere between foliage and OD green. Thanks for all the help guys. Once I saw the pics, I remembered the order.

SAI Scout Squad
Sage EBR Chassis
Sage mount
Larue M2 RAS II
Leupold VX-R Patrol 3x9
Larue Harris Bipod



·
Registered
Joined
·
10 Posts
Discussion Starter · #13 ·
Thanks.

I got the Harris right from Larue because it was the cheapest with the QD that I could find and no tax.

200 yrds is too easy with this rifle. Going to BLM in Oct to do 300+.
